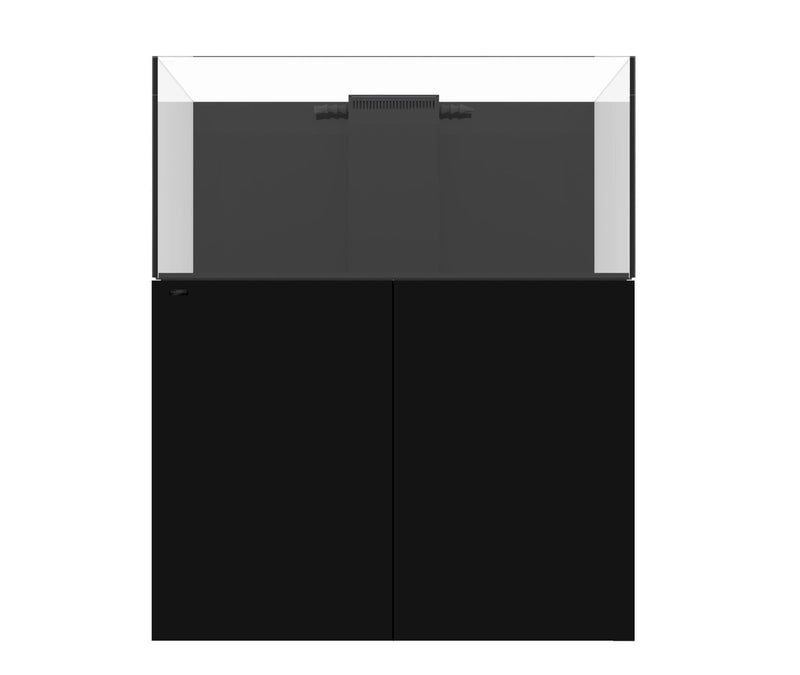

Waterbox REEF 130.4 Reef-Ready Aquarium System

Waterbox REEF systems provide hobbyist a customizable foundation to design their dream aquarium.  The most loved aquarium in the industry makes you fall in love again with aquatics.

REEF Features:

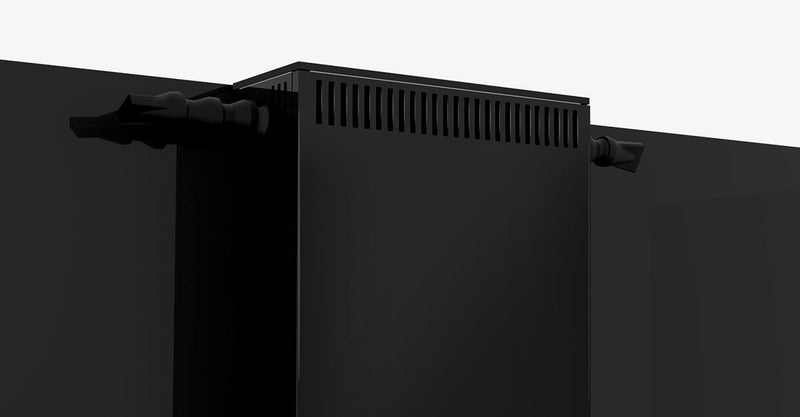

Full Glass Overflow

Overflow boxes are constructed entirely of glass with water-etched weir teeth.

Dual Adjustable Return Nozzles

Each side of the glass overflow box features adjustable return nozzles for precise water agitation.

Glass Overflow Lid

Each Waterbox has an overflow cover with unique branding.

Sock Silencer

Increases filtration and reduces micro-bubbles in the system.

Evaporation Reservoir

The sump system has dedicated 17L chamber for the use of an auto top-off controller.

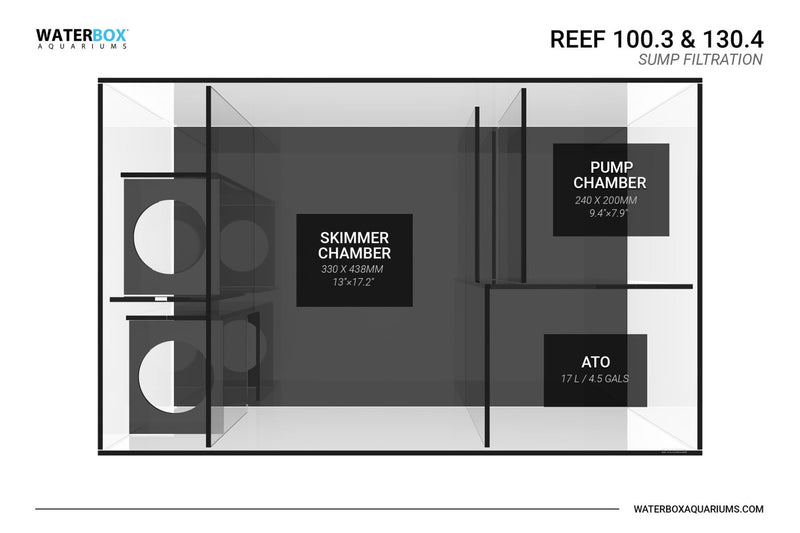

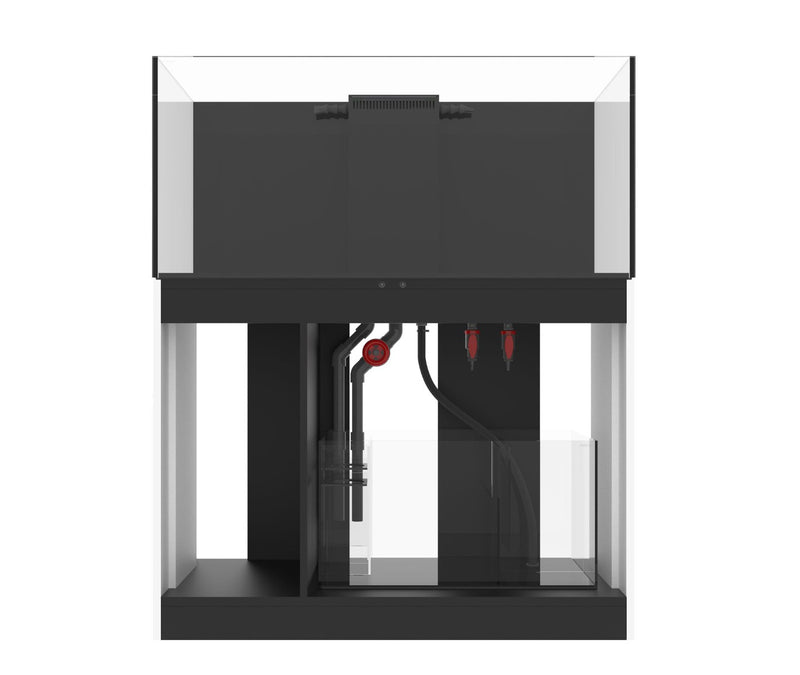

A Reef Ready Sump System.

The REEF system shines above the rest with Waterbox’s thoughtfully designed, sized and placed sump system.

Plumbing.

Waterbox engineers have designed the REEF with a ready to assemble plumbing kit that provides easy installation without any gluing required.

Quick Connect Assembly - Assembly is quick and easy with no gluing required

Precision Gate Valve - Controls the flow through the drains, ensuring quiet operation.

Safety Drain - Diverts water into the filtration compartment preventing an overflow, in the event of a clog.

Dual-Manifold - Additional valves available for optional equipment.

Flexible Return Line - Accommodates your choice of return pump by using a flexible hose.

Check Valve - Designed to eliminate back-siphoning, in the event of a power failure. *Available on the REEF 180.5 and REEF 220.6.

Unparalleled Clarity.

Starphire Ultra-Clear Glass - Low-iron glass on each side of the aquarium provides the best viewing experience of your reef.

Strength & Stability.

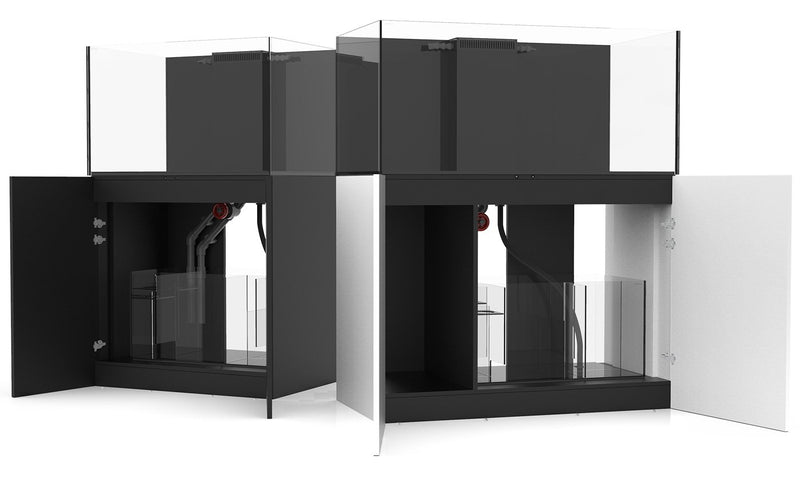

Waterbox furniture is designed to elevate your living spaces with our first in class cabinetry and finishes.
Available in Black or White.

UV Painted & Plywood Construction - All plywood construction promotes longevity in harsh and humid environments.

Soft Close Hinges - PVC coated for saltwater resilience and soft close performance.

Push Open Doors - Recessed push-open hardware keeps the furniture looking sleek and modern.

Levelling Feet - Levelling feet to provide long-lasting support and stability.

System Specification:

Aquarium Dimensions (mm): 1200L x 600D x 550H

Aquarium Volume: 364 Litres

Sump Dimensions (mm): 720L x 450D x 380H

Sump Volume: 116 Litres

Total System Volume: 480 Litres

Aquarium Glass Thickness: 12mm

Aquarium Glass Material: Starphire Low-Iron, Ultra-Clear

Overflow Type: Full Glass overflow box

Return Internal Diameter: 20mm

Filtration Media: 4” Filter Socks (x 2)

Return Pump: Not included

Lighting: Not included

Cabinet Specification:

Dimensions (mm) 1200L x 600D x 900H

Material: 18mm solid plywood (UV Painted)
