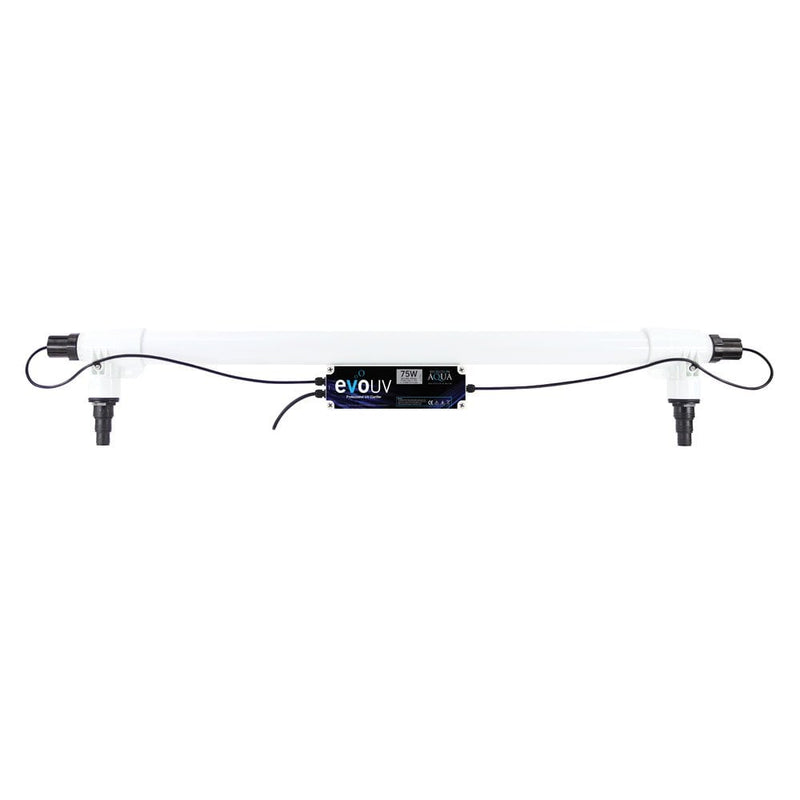

Evolution Aqua evoUV 75W

One new feature is the ease of the serviceability of the evoUV. Changing bulbs, quartz sleeves or replacing a ballast are quick and simple to do.

The evoUV is simple to install, with universal mounting plates allowing you to fix the unit horizontally or vertically, or at any angle you choose.

How the evoUV works

The evoUV range of clarifiers have been designed to clear green water which is caused by single celled green algae and prevent it from returning. They will work alongside many different filtration systems but when used alongside Evolution Aqua’s pond filtration systems, the evoUV will help to deliver crystal clear and healthy pond water.

Your evoUV professional quality UV can be connected to your pond pump and filter with flexible hose using the stepped hosetails provided, or you can install the unit using hard pipe.

Features

• Improves water clarity by eradicating green water.
• High output, energy efficient ballast.
• Fully serviceable for easy maintenance.
• Easy to install.
• Available in six different models.
• 2 year guarantee.

Specifications

• Max. Pond Size:  75,000 Litres / 16,500 UK gallons / 19,815 US gallons
• Max. Flow Rate: 25,000 lph / 5500 UK gph / 6605 US gph
• Bulb Power: Standard 75w (1 x 75W T8)
• Inlet/Outlet: 1 ½”
• Fittings supplied: 2 x 1 ½” threaded hosetails
• Dimensions: 1293mm (L) x 85mm (W) x 153mm (H) excluding hosetails.
• Distance between centre of inlet and outlet: 1071.5mm.

Please Note: No 3-pin UK plug included. evoUV adheres to UK pond equipment laws, and requires that it is wired into a safe, compliant, outdoor electrical system, ideally with an RCD cut-off. If you are unsure, consult a qualified electrician.
