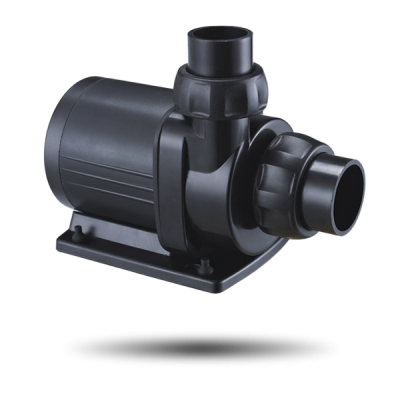

Jecod DCP-6500 Variable Speed DC Return Pump

Jecod 'Professional' Range DCP Pumps

These new pumps improve on the previous DCP pump design as follows:

• Sine Wave controller technology provides super quiet operation
• New Digital Controller- Speed Control Settings Between 30%-100% in 1 Watt increments (DCP-4000 and DC-P2500 has an 8 speed controller)
• Digital display of power consumption.
• Suitable for external and internal operation
• Seals for input and output connections
• Improved Head Pressure Performance over DCP Models
• New Enclosed Impeller Design For a more Quiet Operation
• Energy Saving up to 65%
• IC Electronic Detection- Automatic Power Off Protection Upon No Water
• Wear Resistant Ceramic Shaft

DCP-4000 (33W)

Maximum flow rate of up to 4,000 litres/hour - adjustable from 1,200 - 4,000 litres per hour ( in 8 steps ).​

• Electronic detection of no water enables automatic power off protection
• Motor protection if rotor is blocked
• Can be used in Marine and Freshwater applications
• No copper elements
• Long operation life is achieved by the use of wear resistant ceramic shaft
• Soft start operation - pump gradually builds up to set flow rate
• Feed mode disables pump for 10 minutes
• Speed settings (30% - 100%) in 1Watt (or 8 steps for DCP-2500/4000) steps with power consumption indication - setting is retained if power is lost.

Dimensions: 196 x 104 x 163 L x W x H (mm)

Connections : 32mm & 40mm metric socket rigid pipe connector, 20mm, 25mm, 32mm & 40mm hosetail connectors for flexible hose.
